Isotek NeoPlug

Isotek NeoPlugIsotek_IsoPlug

The NeoPlug is another IsoTek revelation. As we plug more and more appliances into our mains sockets, the power to our HiFi gets worse. Why? Virtually every household appliance puts ‘noise’ into the mains – resulting in degraded sound. The IsoPlug prevents this noise from appliances polluting the mains in the rest of the house.
Simply plug NeoPlug into any socket next to a noisy appliance (computer, washing machine, etc) and in sockets next to or near your HiFi or Home Cinema system, and you’ll experience improved sound and picture quality, guaranteed.

The new NeoPlug is a huge improvement over its predecessor and should not be confused with similarly named or ‘copycat’ models. The NeoPlug is an easy to use plug and play product that removes the mains noise from noisy household appliances.

The new NeoPlug is a careful balance between quantity and quality, as the circuit had to be highly effective, but be built essentially for a price point. Even at this level the quality of components used within the design are paramount, therefore Isotek employed highly effective design principles with critical component specification.

Because capacitors suffer from inductance (which is the opposite of capacitance), very high quality capacitors with the least inductance were specified. The over voltage protection has three functions, firstly to protect your audio or AV system, secondly, to protect the device itself (IsoPlug) and thirdly, to ease the workload of the capacitor. This has a highly desirable effect on the overall function of the device. A poor choice of any of these components, especially the over voltage device can actually have an adverse effect and ruin sound quality (dynamics).

Precio: €50,00


(Producto no disponble en estos momentos)

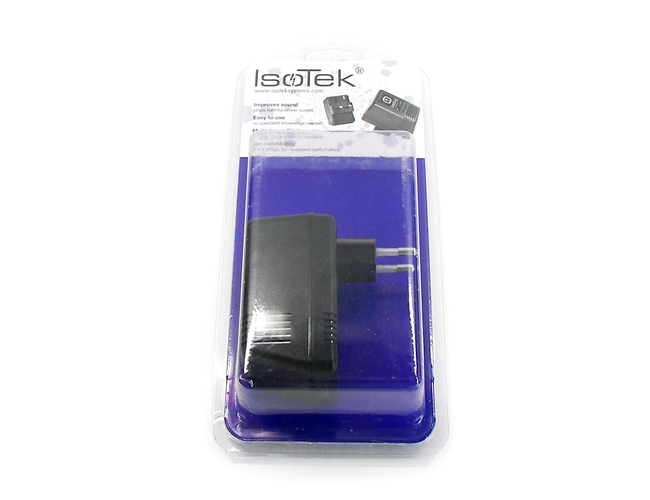

Isotek IsoPlug

Isotek IsoPlug Isotek_IsoPlug

The IsoPlug is another IsoTek revelation. As we plug more and more appliances into our mains sockets, the power to our HiFi gets worse. Why? Virtually every household appliance puts ‘noise’ into the mains – resulting in degraded sound. The IsoPlug prevents this noise from appliances polluting the mains in the rest of the house.
Simply plug IsoPlug into any socket next to a noisy appliance (computer, washing machine, etc) and in sockets next to or near your HiFi or Home Cinema system, and you’ll experience improved sound and picture quality, guaranteed.

The new IsoPlug is a huge improvement over its predecessor and should not be confused with similarly named or ‘copycat’ models. The IsoPlug is an easy to use plug and play product that removes the mains noise from noisy household appliances. For a more sophisticated solution, see Isoteks new NeoPlug.

When Isotek developed the IsoPlug they wanted to do their best to improve on what is basically a text book application to a problem, i.e. a delta filter configuration across the tree poles of the mains, this configuration formed the basis for the original IsoPlug.

The new IsoPlug is a careful balance between quantity and quality, as the circuit had to be highly effective, but be built essentially for a price point. Even at this level the quality of components used within the design are paramount, therefore Isotek employed highly effective design principles with critical component specification.

Because capacitors suffer from inductance (which is the opposite of capacitance), very high quality capacitors with the least inductance were specified. The over voltage protection has three functions, firstly to protect your audio or AV system, secondly, to protect the device itself (IsoPlug) and thirdly, to ease the workload of the capacitor. This has a highly desirable effect on the overall function of the device. A poor choice of any of these components, especially the over voltage device can actually have an adverse effect and ruin sound quality (dynamics).

Precio: €40,00

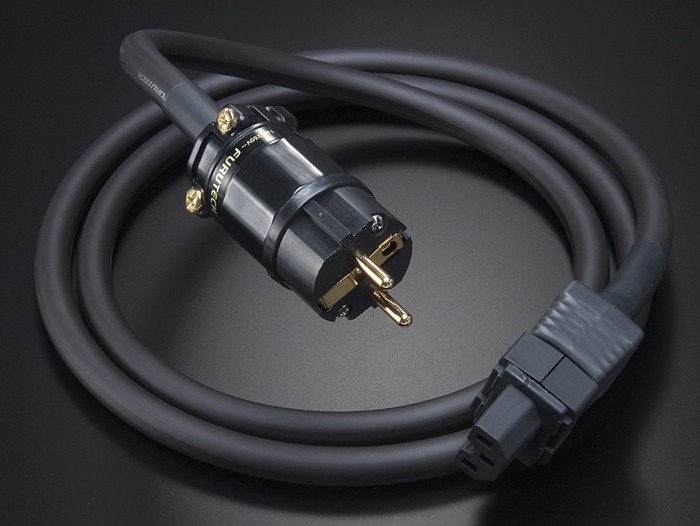

Furutech G-314AG-18E

CONSTRUCTION :furutech_314ag18e

  • LIVE Conductor : 37-strands of 0.25mm diameter Fine Silver Plated α (Alpha) μ-OFC (14 AWG/2,08mm²)
  • NEUTRAL & GROUND Conductors : 37-strands of 0.25mm diameter α (Alpha) μ-OFC (14 AWG/2,08mm²)
  • The above internal wiring uses Polyethylene (PE), (Red/Natural/Yellow) 3.4mm diameter, insulation to reduce capacitance
  • INNER SHEATH : Vibration Suppression Flexible PVC (Black) 9.3mm diameter
  • SHIELD : 9 x 24 strands of 0.12mm braided α (Alpha) conductor
  • SHEATH : Flexible PVC (Brown) approx. 12.9mm diameter
  • SCHUKO Plug : FI-E11 (G) with 24k Gold-Plated Eutectic Copper Alloy α (Alpha) Conductors
  • IEC C15 Plug : FI-15E (G) with 24k Gold-Plated Pure Copper α (Alpha) Conductors

Electrical Properties

  • Max. Conductor Resistance 10.0 Ω/km JISC3005 6 20℃
  • Min. Insulation Resistance 1000 MΩ-km JISC3005 9.1 20℃
  • Dielectric Strength AC. 1000 V/1 min. JISC3005 8

Precio: €129,00

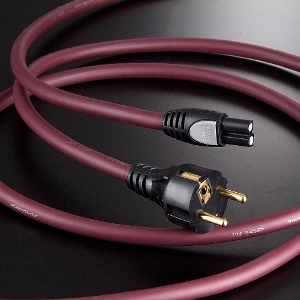

Furutech G-320-AG-18F8

Furutech introduces two new power cords for the European market, the G-320Ag-18-EU and the furutech_g320ag18f8euG-320Ag-18F8-EU. These are perfect replacements for the low-quality “throw-away” power cords supplied with most modern video displays.

• Twisted 3 core high end performance power cable
• Red- 37 strands of 0.26mm silver-plated α (Alpha) OFC Conductor
• Yellow -37 strands of 0.26mm silver-plated α (Alpha)OFC Conductor
• Green- 37 strands of 0.26mm α (Alpha) OFC Conductor
• Insulation: Polyethylene (Red/Natural/Yellow) 3.5mm diameter
• Fillers: Cotton with paper tape wrap
• Sheath: Flexible PVC (Burgundy) approx. 10mm diameter

Precio: €79,00

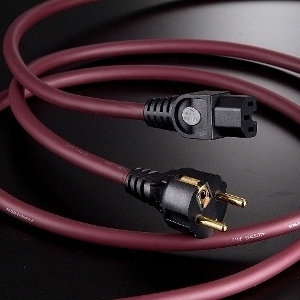

Furutech G-320-AG-18

Furutech introduces two new power cords for the European market, the G-320Ag-18-EU and the furutech_g320ag18euG-320Ag-18F8-EU. These are perfect replacements for the low-quality “throw-away” power cords supplied with most modern video displays.

  • Twisted 3 core high end performance power cable
  • Red- 37 strands of 0.26mm silver-plated α (Alpha) OFC Conductor
  • Yellow -37 strands of 0.26mm silver-plated α (Alpha)OFC Conductor
  • Green- 37 strands of 0.26mm α (Alpha) OFC Conductor
  • Insulation: Polyethylene (Red/Natural/Yellow) 3.5mm diameter
  • Fillers: Cotton with paper tape wrap
  • Sheath: Flexible PVC (Burgundy) approx. 10mm diameter

Precio: €79,00
